Ups uninterruptible power Home  -  Products  -  Ups uninterruptible power

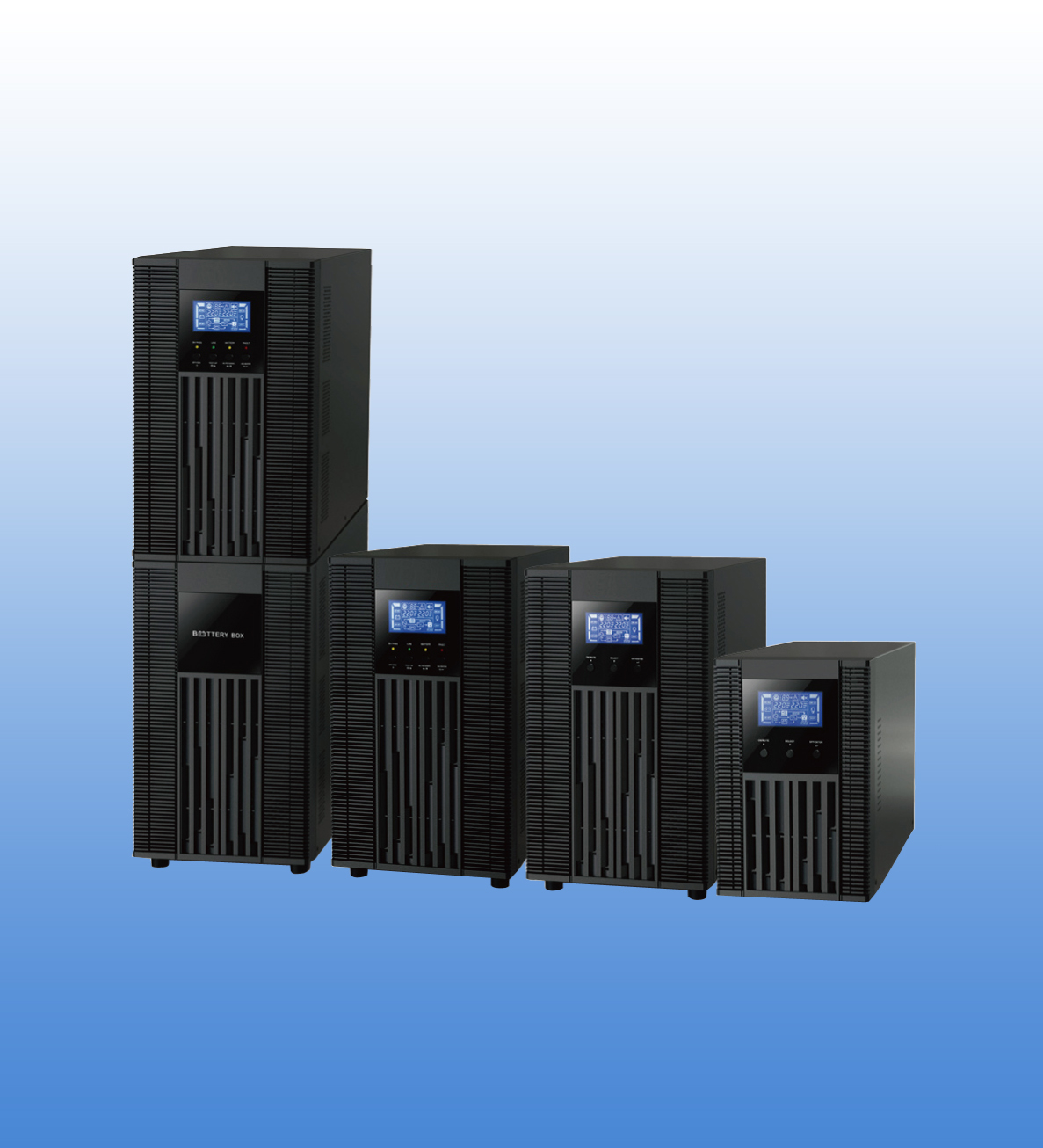

High frequency UPS tower
Categories:Ups uninterruptible power
Previous:No data
Under:On-line UPS power frequency


  • Main features
  • Product Description
  • Technical parameters

 design green power, energy conservation and environmental protection

 ultra wide input voltage range, to adapt to the most demanding power environment

 mature digital control technology, strong power semiconductor devices, triple the hardware and software

Protection, more safe and reliable

 output power factor up to 0.9, provide more energy

 high efficiency electric design, online mode efficiency is as high as 90%, save operating cost, reduce more emissions

 green environmental protection, in line with eu environmental directives requirements

 intelligent human nature design, flexible expansion

 battery easy configuration, can satisfy different discharge time requirements

 smart battery real-time monitoring, battery status is in our hands

A variety of options, the flexibility to adapt to different needs both conditions of high altitude

SCC - L long time delay online type series UPS is designed for all kinds of office equipment, communications equipment, digital equipment to provide a stable pure alternating current (ac) of high quality high reliable power supply equipment, widely to solve the power grid, voltage sag, swell, undervoltage, overvoltage, electronic jamming, frequency fluctuation, transient, harmonic distortion power problem. For users provide foolproof security equipment and UPS itself

产品型号

SCC0211

SCC0311

SCC0511

SCC0611

SCC0811

SCC1011

SCC1211

SCC1511


额定容量

2KVA/

1.6KW

3KVA/

2.4KW

5KVA/

4KW

6KVA/

5KW

8KVA/

6.4KW

10KVA/

8KW

12KVA/

9.6KW

15KVA/

12KW


相数

单相


电压

160  285Vac


频率

50Hz±5%


电压

220Vac±1%


频率

50Hz±0.1%(电池工作)


波形

纯正弦波


失真

< 3% (线性满载状态下)


效率

AC到AC

> 85%


转换时间

0 ms

直流启动

具备
